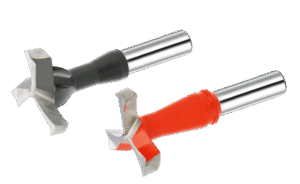

3-Flute TCT Euro Hinge Boring Bit — Industrial CNC Hinge Cup Drilling Tool

The 3-Flute TCT Euro Hinge Boring Bit is a high-performance industrial woodworking drilling tool designed for European concealed hinge cup hole drilling in cabinet doors and panel furniture. Engineered with three precision-ground cutting wings, a high-density carbide-tipped (TCT) structure, and optimized flat-bottom boring geometry, it delivers exceptionally clean hinge cup holes, minimal tear-out, and long-lasting performance across MDF, particle board, plywood, melamine panels, and solid wood.

The center-point design ensures accurate drilling alignment, making it ideal for CNC hinge boring machines, automatic drilling centers, and multi-spindle line boring systems used in large-scale cabinet production.

This bit is built specifically for 35mm Euro hinge drilling, 40mm hinge cup drilling, and professional cabinet door hinge installation workflow, providing unmatched consistency for high-volume manufacturing lines.

🔑 Key Features

Three Cutting Wings (3-Flute High-Precision Geometry)

Offers smooth entry, chip-free hinge cup drilling, and clean flat-bottom holes—ideal for high-speed CNC drilling lines.

Premium TCT (Tungsten Carbide-Tipped) Cutting Edges

Industrial-grade TCT carbide ensures superior wear resistance, extended tool life, and consistent accuracy in bulk furniture manufacturing environments.

Center-Point Positioning for CNC Precision

Maintains exact location during drilling, preventing walking—perfect for CNC hinge boring heads, automatic hinge drilling systems, and nested-based CNC operations.

Optimized Flat-Bottom Design for Euro Hinges

Generates high-precision concealed hinge cup holes, fully compatible with Blum, Hettich, Grass, and European hinge standards.

Reinforced Body & Industrial Brazing

Withstands continuous high-RPM drilling, automated production cycles, and factory-grade boring machine loads.

Universal Compatibility

Fits CNC hinge borers, multi-head boring machines, drilling & inserting systems, and cabinet manufacturing machinery.

🏭 Applications

• 35mm Euro hinge cup drilling

• 40mm concealed hinge boring

• Cabinet door production lines

• Kitchen cabinet manufacturing

• Wardrobe / bathroom cabinet factories

• Panel furniture CNC drilling centers

• Automatic hinge boring & inserting machines

• MDF / Plywood / Particle board / Melamine board processing

• Flat-bottom hole drilling for Euro hinge installation

📐Specifications

Note:★ indicates all sizes can be customized.

Custom Options

• OEM/ODM branding

• Custom diameters & lengths

• Custom cutting angles

• Special coatings for longer tool life

• Packaging customization

⭐ Benefits

• Perfectly smooth hinge cup holes with zero tear-out
• Optimized for 35mm & 40mm Euro hinge systems
• Long-lasting carbide cutting edges for factory-level production
• Reduced tool wear, burning, and production downtime
• Ensures CNC-grade drilling precision in mass production
• Ideal for furniture manufacturers, cabinet factories, and OEM hinge drilling systems

🤝 Why Choose ZC-TOOLS 3-Flute TCT Euro Hinge Boring Bit？

ZC-TOOLS provides professional CNC woodworking cutting tools trusted by cabinet factories worldwide. Our Euro hinge boring bits deliver:

• Precision manufacturing with CNC-ground flutes

• Stable drilling performance even under long-cycle heavy loads

• High-quality TCT carbide selection for extended lifespan

• Strict concentricity control for accurate hinge cup alignment

• Excellent performance on MDF + melamine laminated board production lines

This is the ideal hinge drilling solution for professional furniture factories, OEM cabinet door production, and automated hinge boring machines.
